The PI133E-J422R solves the critical trade-off between aesthetic design and industrial utility. While most 13.3-inch industrial computers are limited to dual LAN, the PI133E-J422R provides a rare 4-port Ethernet expansion (Intel i211/i255V) within a thin bezel aluminum chassis. This configuration is specifically engineered for Machine Vision and Edge AI Gateways requiring high-bandwidth data acquisition and wide-voltage (9-36V) stability.
13.3 inch Industrial Panel PC
| Item No. PI133E-J422R | ||
|---|---|---|
| LCD Display | Display Type | 13.3″ TFT-LCD |
| Viewing Angle (H/V°) | 85 (left), 85 (right), 85 (up), 85 (down) | |
| Resolution | 1920*1080 | |
| Luminance (cd/m2) | 250 cd/m2 | |
| Backlight Life MTBF (hrs)) | 30,000 hrs (Min.) | |
| Touchscreen | Touch Type | 5-wire Resisitve touch screen (Capacitive touch optional) |
| Light Transmission | 85% | |
| Life Time | 10 Million Activations | |
| CPU | CPU/Socket | lntel Celeron J4125/J6412/N100 CPU / 8/10/11/12/13th Gen Core i5 /i7 |
| Memory | Technology | J4125/J6412: DDR4 SODIMM x1 J4125 up to 8GB, J6412 up to 32GB 8/10/11th Core i5/i7 DDR4 SODIMMx2 UP to 64GB N100/N150 DDR5 SODIMM x1 UP to 16GB 12/13th Gen Core i5 i7 DDR5 SODIMMx2 UP 64GB |
| Storage | SATA | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5” SATA ) 1 x M.2 2280 NVME |
| Expansion slot | MiniPCIe | M.2 3042/3052 optional for 3G/4G/5G with SIM slot on board M.2 2230 WiFi & BT |
| 2 more Ethernet LAN optional for expansion | ||
| Ethernet | Controller | Intel® i225V |

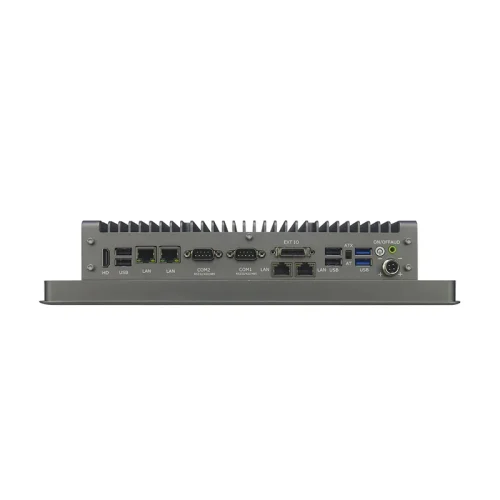

| Connector | 2* RJ45 LAN port (Optional 4* LAN port) | |
| Audio | Audio Interface | 1xAudio line out |
| Watchdog Timer | Yes | |
| IO | USB3.0/2.0 | 4*USB2.0+2*USB3.0 (J4125/J6412/N100 /11th Gen Core i5 i7) |
| 4*USB3.0+2*USB2.0 for 8/10/12/13th Gen i5/i7 | ||
| COM Port | 2x DB RS-232/422/485 port, 4*RS232 Optional in expansion port | |
| HDMI | 1*HDMI | |
| GPIO | Optional from expansion port. | |
| Power | Power type | DC |
| Input Voltage | 9-36V DC arial connector | |
| Power Adaptor | AC to DC, DC12V/5A, | |
| Environment | Operation Temp. | With air flow -10 ~ 60° C |
| Storage Temp. | -20 ~ 70° C | |
| Relative Humidity | 95% @ 40° C (non-condensing) | |
| Anti-vibration | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Anti-shock | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | |

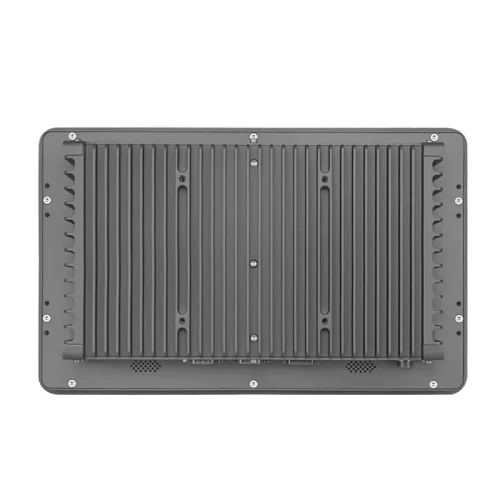

| Mechanical | Mounting | Panel Mounting/ 75/100mm VESA mounting |
| Dimension (mm) | 327 * 204 * 66.5 mm | |
| Construction | Aluminum housing | |
| Front Panel Protection | IP65 front panel Compliant | |
| OS | Windows | Windows 10/11 / Ubuntu，CentOS |
