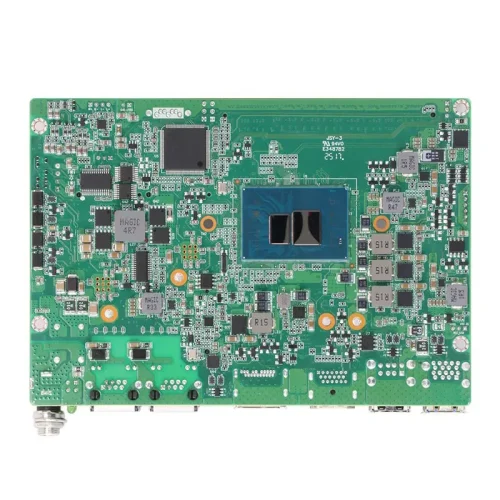

The 3.5″ Embedded Industrial Motherboard is powered by the Intel® Alder Lake-N platform, supporting processors from Intel® N97, N100, N200 to Core™ i3 N300/N305. Designed for industrial-grade performance and reliability, this compact motherboard delivers high-speed DDR5 memory support, versatile display outputs, and robust I/O connectivity — all in a standard 3.5-inch form factor.
Whether used in industrial automation, digital signage, or transportation systems, it ensures long-term stability and seamless integration into your projects.
| CPU/Socket | Intel Alder Lake-N Support CPU N97/N100, i3-N300/N305 |
|---|---|
| Chipset | Intel Alder Lake-N |
| BIOS | 64Mb SPI FLASH |
| RAM | 1x SO-DIMM DDR5, support Max 32GB |
| Storage | 1x SATAIII 1x M.2 (Support M-Key 2242, support SATA/NVME Self-adopted) |
| Display | HDMI+DP+LVDS/EDP HDMI: 1x HDMI standard, support max. 4096 x 2160@60Hz DP: 1x DP, Support Max, 4096 x 2160@60Hz Dual channel LVDS/EDP: EDP & LVDS is Either Or selection, by default set asLVDS |
| Ethernet | 2* Intel 10/100/1000Mb Ethernet, Intel i211 |
| COM | 6x COM, support electrically insulation. COM1, COM2 support RS232/485/422, COM3-6 Support RS232 |

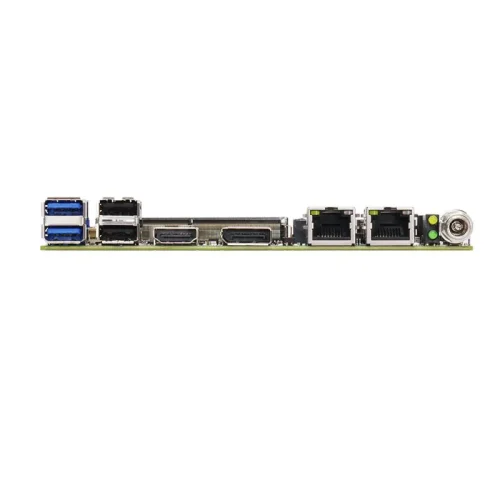

| USB | 2x USB3.0(IO Port), 5x USB2.0 (2* I/O port, and 3 pins on board) |
| Audio | Realtek ALC897; Support Line-out, Line-in, Mic-in(pins on board) |
| GPIO | Provide 2* 2x 5 Pin 2.0mm GPIO pin header, support 8*IN/ 8*OUT |
| Expansion | 1x M.2 E-KEY 2230, support WIFI/BT |
| 1x M.2 B-KEY 3042/3052, support 4G/5G Module | |
| Watchdog | watchdog time |
| Power | DC9-36V |
| Working Temp | 0℃~60℃ |
| Storage Temp. | -20~85℃ |
| Humidity | 5%~95%, non-condensing |
| OS | Support Win7/8/10 / Linux |
| Dimension | 146*102mm |
Typical Applications
-
Industrial Control & Automation – PLC systems, machine control, CNC equipment
-
Digital Signage & Media Playback – Advertising displays, interactive kiosks, large LCD walls
-
Transportation & Traffic Control – Vehicle electronics, traffic monitoring, smart ticketing
-
Self-Service & Financial Systems – ATM machines, vending systems, POS terminals
-
Information & Communication Systems – Data collection terminals, public information boards
-
Defense & Military – Rugged embedded computing solutions
