| Motherboard No.BI10-Q670B | ||
|---|---|---|
| Dimension | Dimension (mm) | 305*245mm,ATX industrial Motherboard |
| CPU | CPU/Socket | Supports Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU with Q670 |
| CPU TDP | 95W | |
| Chipset | Intel Q670 Chipset | |
| BIOS | 64Mb SPI FLASH | |
| Memory | Technology | DDR5 4800 MHz |
| Max. Capacity | 192 GB | |
| Socket | 4 x DIMM | |
| Display | VGA | 1 x VGA |
| HDMI | 1 x HDM I | |
| DP | 1 x DP | |
| Storage | SATA | 4 x STATIII,1x M.2 Support 2242/2260/2280 Key-M SSD,
support SATA CAN BUS& Nvme protocoal) |
| RAID | RAID0/1/5/10 | |
| Expansion slot | PCIe | 2 x PCI-E 16X（both use is PCI-E X8 signal） 4.0, 4 x PCIE 4X 4.0, 2 x PCI |
| MiniPCIe | N/A | |
| Ethernet | Controller | Intel I219 + Intel I226 Ethernet Connection |
| Speed | 1Gbps | |
| Connector | RJ45 | |
| Audio | Audio Interface | F_Audio header |
| Connector | Audio&Mic-in | |
| CODEC | Realtek High Definition Audio | |

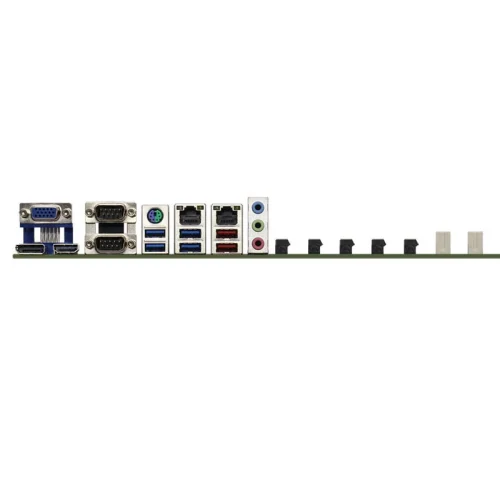

| IO Port | USB3.0/2.0 | 6 x USB3.2 |
| LAN | 2 x LAN | |
| Display Port | 1 x VGA, 1 x DP, 1 x HDMI | |
| Audio | 1 x Audio & 1 x Mic-in & 1 x Line-out | |
| Other IO | 1 x PS/2, 1x LPT
1x TPM2.0 |
|
| COM Port | 6 x RS232/485/422 | |
| Header | Panel | 1 x F_Panel header |
| Audio | 1 x 9 Pin Header | |
| USB3.0/2.0 | 6 x USB2.0 header, 2 x USB2.0 type-A inside | |
| COM Port | 4*RS232 header | |
| GPIO | 1 x 8bit header with 4in/4out | |
| LPT | 1 x LPT Header | |
| PS/2 | 1 x PS/2 Header | |
| Power | Power Type | ATX 24pin + 8pin |
| Environment | Operational Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 75° C | |
| Relative Humidity | 95% @ 40° C (non-condensing) | |
| Operating System | Windows | Windows 10/11 |
| Linux | Ubuntu, CentOS | |
