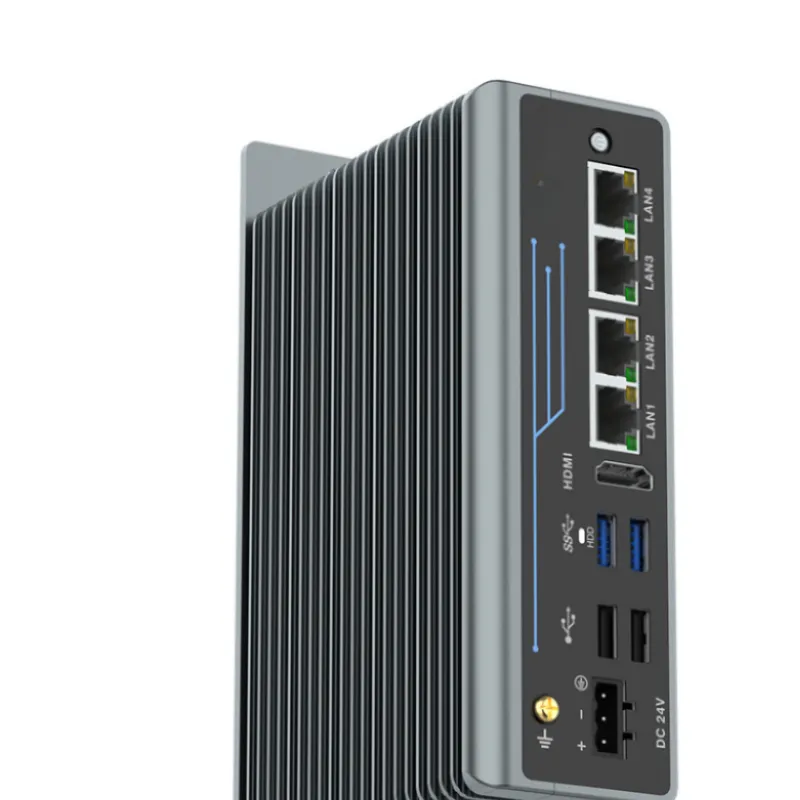

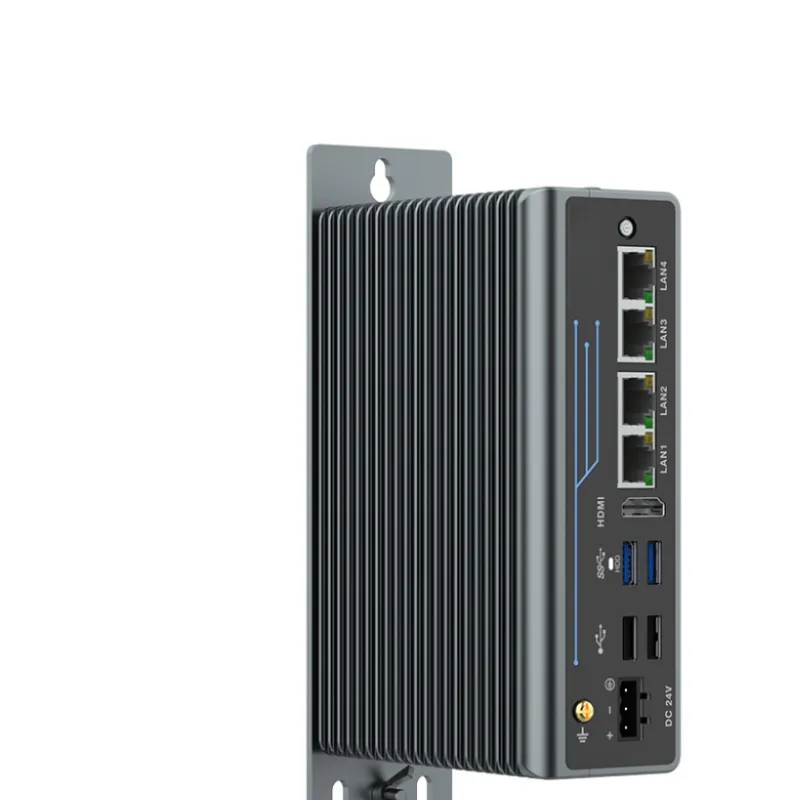

High-Performance Industrial Mini PC for DIN Rail Mounting
The Vstrong Edge Computing series offers a robust Industrial Mini PC specifically designed for convenient DIN rail mounting. As a high-performance industrial edge controller, it boasts a modular and flexible architecture. This adaptability allows it to meet the diverse demands of various industrial automation applications.
Powerful and Efficient Processing
Featuring energy-efficient yet powerful Intel® 12th Gen Alder Lake N-series processors, these compact industrial PCs deliver scalable computing power. Consequently, they are ideal for demanding real-time industrial control tasks.
Versatile Expansion and Connectivity
Expand functionality effortlessly thanks to the integrated Mini PCIe interface. This supports various industrial wireless solutions, such as Wi-Fi for industrial use and 3G/4G connectivity for remote industrial applications. Furthermore, it accommodates CAN bus interfaces for industrial control and other peripheral expansions. Benefit from reliable, high-speed communication through four Gigabit Intel® i210 Ethernet ports. As a result, you get dependable network performance in challenging industrial environments.
Optimized for Real-Time Applications
This Linux-based industrial computer is specifically optimized for real-time control systems. It achieves an impressive 250μs scan cycle and minimal 20μs jitter. Therefore, it is perfectly suited for high-precision automation, advanced motion control, and critical timing applications.
Ideal for Industrial IoT and Automation
Target applications for this DIN rail mount industrial PC include industrial IoT edge devices and sophisticated automation systems. Moreover, it excels in intelligent machine control scenarios requiring high-performance processing. Its exceptional stability and adaptable architecture are crucial for demanding real-time data processing. Choose Vstrong for your advanced industrial computing needs.
| Processor | Alder Lake-N | N97 | N100 | Core i3-N305 |
|---|---|---|---|---|
| Core/threads | 4C | 4C/4T | 8C/8T | |
| Max Turbo frequency | 3.6 GHz | 3.4 GHz | 3.8 GHz | |
| Cache | 6 MB | 6 MB | 6 MB | |
| Processor base power | 12W | 6W | 15W | |
| BIOS | AMI UEFI BIOS | |||
| RAM | Memory | 1x SO-DIMM DDR4 up to 16GB | ||
| Display | GPU | Integrated Intel Graphics | ||
| Display Via | 1x HDMI, Max. resolution: 4096*2160@30Hz | |||
| Ethernet | Speed | 10/100/1000 Mbps | ||
| controller | 4x Intel i210 | |||
| Interface | 4 x RJ45 | |||
| Storage | M.2 | 1x M.2 Key M 2280 Slot for NVMe(PCIe 2X Signal)/SATA SSD | ||
| SATA | 1x SATA interface, with power supply | |||
| Expansion | Mini PCIe | 1x Mini PCIe, PCIe+USB2.0, for Wi-Fi and 4G modules | ||
| IO | COM | 2x COM, Default RS232, RS485 congurable via jumper | ||
| USB2.0 | x2 | |||
| USB3.0 | x2 | |||
| GPIO | 8 bits (4-IN 4*Out) | |||
| Mechanical | Size | 160mm × 115.5mm × 50mm) | ||
| Weight | TBD | |||
| Power | Power | 12V-24V DC-IN (3-pin 5.08 power connector) | ||
| Environment | Working Temp. | – 20°C to 60°C | ||
| Storage temp. | – 40°C to 80°C | |||
| Cooling | Passive (Active for i3-N305) | |||
| ESD (EN61000-4-2) | ±8kV Air Discharge for all surfaces ±6kV Contact Discharge for exposed conductive surfaces |
|||
| OS | Windows 10/11 64bit, Linux 64bit | |||
