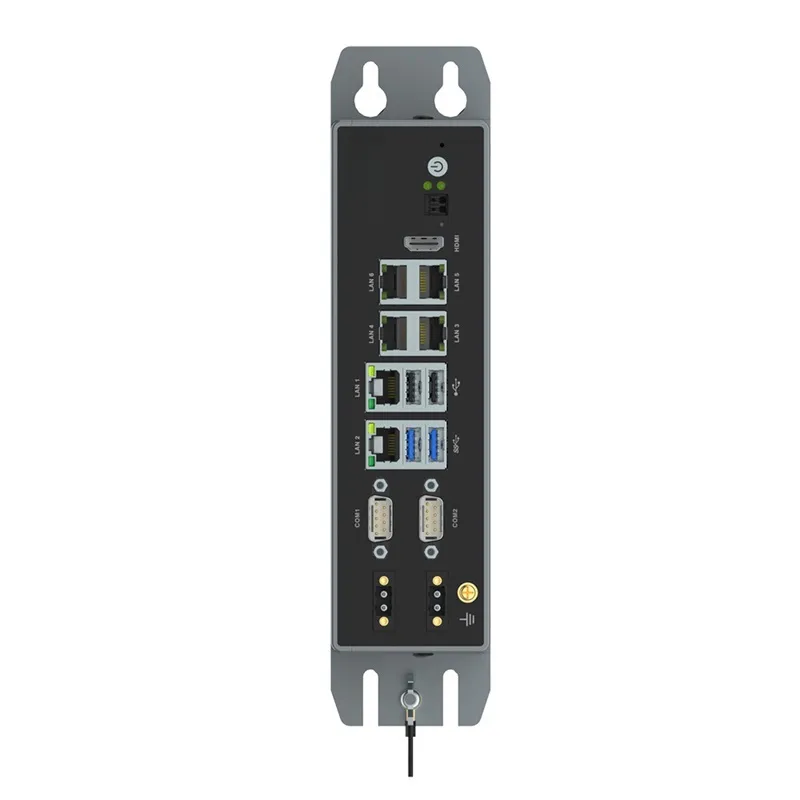

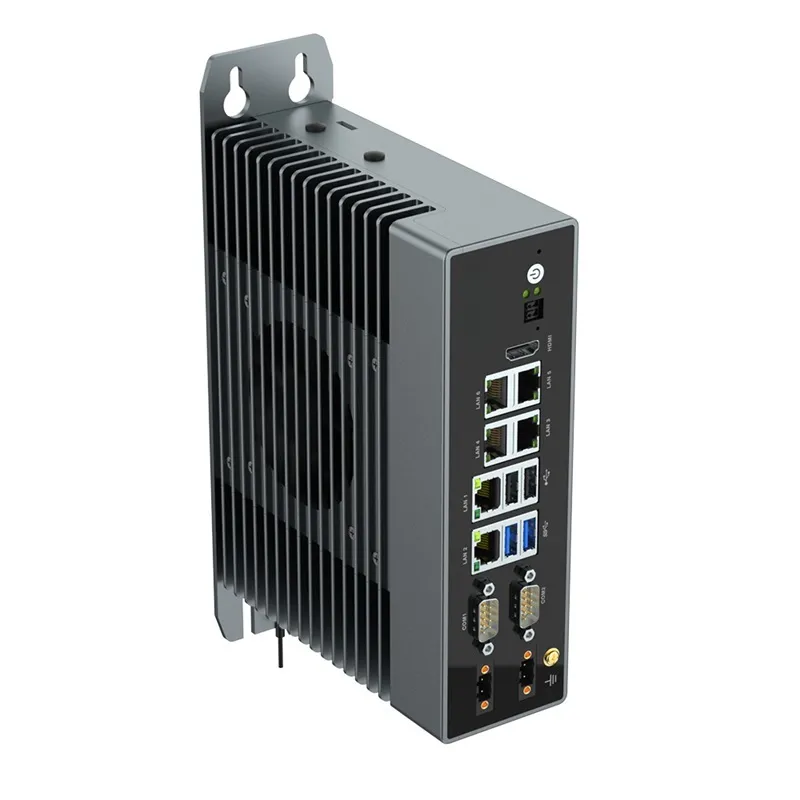

Modular High-Performance Edge Computers for DIN Rail Systems
The VstrongTech IF series edge computers are engineered with a highly modular design. Consequently, they offer exceptional flexibility for high-performance edge computing. Furthermore, they seamlessly integrate into DIN-rail industrial control systems. This key feature empowers users to tailor configurations precisely to their unique application requirements.
Versatile Processing Power
Powered by 8th Gen (Whiskey Lake Platform) and 11th Gen (Tiger Lake Platform) Intel Celeron and Core i3/i5/i7 processors, the IF series delivers versatile computing power. As a result, users experience increased productivity across various industrial tasks.
Enhanced Connectivity and Security
The IF series provides robust connectivity through a built-in Mini PCIe interface. This allows for the support of multiple peripherals. Additionally, an internal USB Dongle interface ensures enhanced software security, protecting critical operations.
Real-Time Performance for Reliable Control
Moreover, the IF series incorporates 128KB built-in ferroelectric memory. It also features high-speed isolated digital I/O (4x DI, 4x DO). Furthermore, support for TSN (Time-Sensitive Networking) technology ensures the high real-time performance necessary for dependable industrial control.
| Processor | CPU Intel® 6/7/8/9th Gen | i3-6100T | i5-7500T | i7-8700T |
|---|---|---|---|---|
| Core/threads | 2C/4T | 4C/4T | 6C/12T | |
| Max Turbo frequency | 3.2 GHz | 3.3 GHz | 4.0 GHz | |
| Cache | 3 MB | 6 MB | 12 MB | |
| Processor base power | 35W | 35W | 35W | |
| BIOS | AMI UEFI BIOS | |||
| RAM | Memory | 2x SO-DIMM DDR4 up to 64GB | ||
| Display | GPU | Integrated Intel Graphics | ||
| Display Via | 1x HDMI, Max. resolution: 4096*2160@30Hz | |||
| Ethernet | Speed | 10/100/1000 Mbps | ||
| controller | 5x Intel® i210+1x Intel® i219 | |||
| Interface | 6 x RJ45 | |||
| Storage | M.2 | 1x M.2 Key M 2280 Slot for NVMe(PCIe 2X Signal)/SATA SSD | ||
| SATA | 1x SATA interface, with power supply | |||
| Expansion | Mini PCIe | 2x Mini PCIe, PCIe+USB2.0, for Wi-Fi and 4G modules | ||
| IO | COM | 2x COM, Default RS232, RS485 congurable via jumper. | ||
| USB2.0 | x2 | |||
| USB3.0 | x2 | |||
| Mechanical | Size | 200mm × 162mm × 60mm | ||
| Weight | TBD | |||
| Power | Power | 12V-24V DC-IN (3-pin 5.08 power connector) | ||
| Environment | Working Temp. | – 20°C to 60°C | ||
| Storage temp. | – 40°C to 80°C | |||
| Cooling | Active. External Removeable Fan | |||
| ESD (EN61000-4-2) | ±8kV Air Discharge for all surfaces ±6kV Contact Discharge for exposed conductive surfaces |
|||
| OS | Windows 10/11 64bit, Linux 64bit | |||
