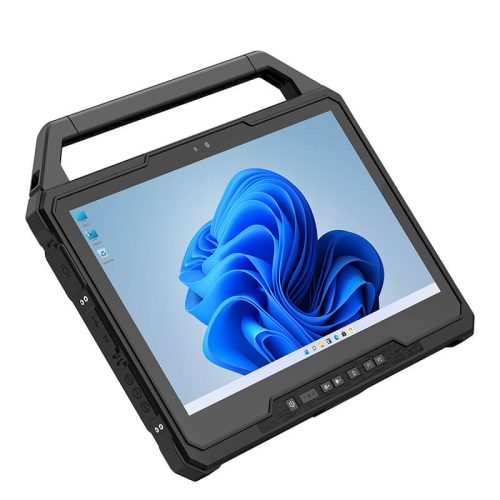

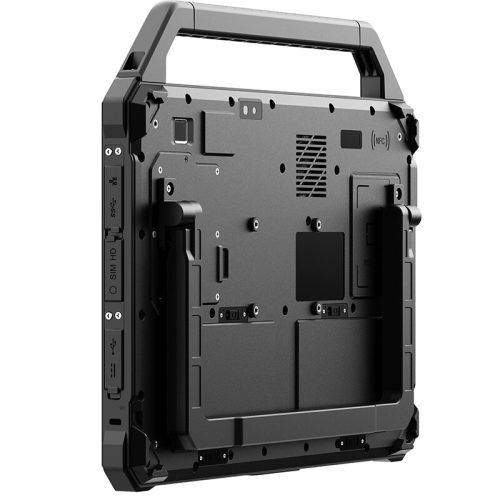

The Vstrong T1133A-U is a high-performance, 13.3-inch rugged tablet engineered for mission-critical industrial applications. Powered by 12th Gen Intel® Core™ i5/i7 processors and featuring a high-definition 500-nit display (customizable to 1000 nits), this tablet bridges the gap between portable convenience and workstation power. Designed to withstand the harshest environments, it is MIL-STD-810H and IP65 certified, making it the ultimate tool for field reconnaissance, equipment maintenance, and command and control operations.
Upload Image...
| Basic parameters | Product Form | 13.3-inch rugged tablet |
|---|---|---|
| Type | Rugged tablet PAD, industrial tablet PC, handheld tablet terminal | |
| Product applicable | Command and control, communication support, data reconnaissance, equipment maintenance, exploration mapping and other industrial occasions | |
| Material | Plastic mold shell, silicone protection angle, waterproof strip | |
| Size/Weight | 336.80mm*224.80mm*23mm (excluding corner guard ±1) Weight: subject to the actual product | |
| Color | black | |
| Display | 13.3-inch high-definition LCD screen: 1920*1080 resolution, 500 brightness. Customizable 1000 brightness highlight screen. | |
| Touch Screen | 10-point touch G+FF, hardness ≥ 7H, support wet hand touch screen, glove touch screen | |
| Speaker, Microphone | *2, Speaker, 2W/4Ω *1, MIC |
|
| Battery | Dual intelligent disassembly battery: Single battery 3000mAh*2, 11.4V，Operating time ≥ 5 hours (TBD value); (simulated office environment, brightness 50%, volume 50%) | |
| Camera | Front: 8.0 MP fixed focus camera Rear: 12.0 MP autofocus camera with flash support |
|
| Keys | On/off key, brightness +/-, menu key, P1, P2 (scanning key) Customized function keys | |
| Hardware configuration | CPU | Intel Core Alder Lake i5-1235U 10-core 12-thread 1.3GHz-4.4GHz Optional i7-1255U 10-core 12-thread 1.7GHz-4.7GHz |
| RAM/ROM | Standard 16+256G, DDR/SSD pluggable, up to 48GB memory 2TBSSD | |
| TPM | Built-in TPM security chip | |
| Gravity Sensor | Support | |
| System | Operating System | Windows 11 Optional windows 10, Ubuntu 22.04.5 |
| Wireless function | WIFI | Built-in WIFI 802.11 b/g/n/ax , Wifi6 |
| Bluetooth | Bluetooth 5.2 Transmission distance: 10m | |
| GPS | GPS, Beidou, Galileo, GLONASS | |
| 2G/3G/4G/5G （optional） |
GSM：B2/B3/B5/B8；WCDMA：B1/2/4/5/6/8/19；CDMA：BCO/BC1/BC10；FDD：B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66/71 TDD：B34/38/39/40/41 5G NSA：N1/2/3/7//25/41/66/77/78/79 5G SA：N1/2/3/5/7/8/12/20/25/28/38/40/41/66/71/77/78/79 |
|
| Data Acquisition | 1D/2D Code （optional） |
Default (N4680) 30 million pixels + depth of field Code 39 5mil 50~173mm+red light Barcode formats: 2D: Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible, Grid Matrix, Dot Code 1D: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93ī, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with extension, Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Simulation, GS1 DataBar High-configuration version (N670) 1 million pixels + depth of field Code 39 5mil 45~200mm+cross laser |
| NFC （optional） |
13.56MHZ, support 14443A/14443B/15693 protocols, etc. | |
| ID Card （optional） |
Standard second-generation offline Ministry of Public Security certified ID card reader module | |
| UHF （optional） |
2 options: Within 2 meters, operating frequency 840-960MHz Within 5 meters, operating frequency 860-960MHz |
|
| Fingerprint Capture （optional） |
1: Common industrial fingerprints 2: Ministry of Public Security certified fingerprints 3: FBI certified fingerprints |
|
| Login fingerprint (standard) |
SPI interface | |
| Connector | Type -A | *1, Type-A USB3.0 |
| Type -A | *2, Type-A USB2.0 | |
| Earphone Earphone Jack | *1, 3.5mm standard headphone jack | |
| TF Card | *1, supports up to 256GB expansion | |
| SIM Card | *1, Standard Micro SIM card slot | |
| HDMI | *1, HDMI | |
| DC connector | *1, 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) | |
| RJ45 network port | *1, 100/1000M | |
| DB9 connector | *1, RS232 serial port (optional 232/422/485 protocol) | |
| POGO PIN connector | *1, 14Pin USB+Charging | |
| Expansion function | Reserve Air-Plug Interface: 1*Power Input Air-Plug Interface, 1*USB2.0 Air-Plug Interface, 1*COM Air-Plug Interface | |
| Integratability | Expandable, Integration of Customer Modules, Customizable Function Interfaces | |
| Product Reliability | Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Operating temperature | -20℃~60℃ （customizable -30℃~60℃) | |
| Storage temperature | -30℃~70℃ (can be customized -40℃~70℃) | |
| Humidity | Humidity: 95% Non-Condensing | |
| Certifications | IP65 (dustproof, waterproof), 3C, CE, U.S. military standard MIL-STD-810H certification, ISO quality certification system, ROHS | |
| Other | Power Adapter | 19V-3.42A, DC power adapter |
| Optional Accessories | reserved for carrying bag, shoulder strap, stylus; reserved for base expansion; network port, serial port, USB port, charging; battery supporting battery charging box; |
|
| Packaging | shell product packaging carton; can be customized external packaging box | |
