| Basic Parameter | |
|---|---|

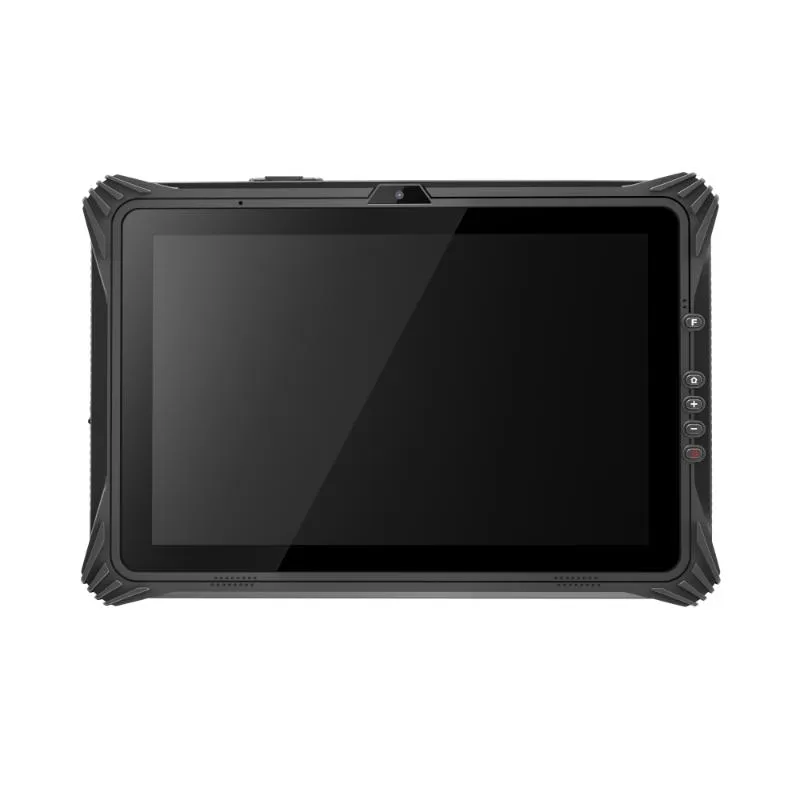

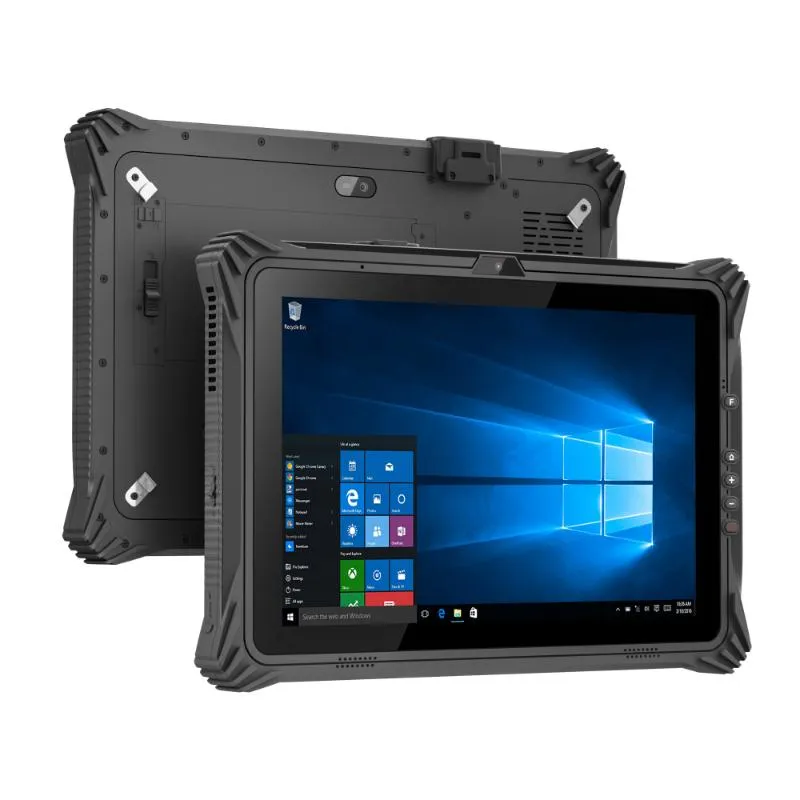

| Product Form | Rugged Tablet |
| 339.3 x 230.3 x 26mm | |
| device unit 1500g | |
| Color: Black | |
| LCD | 12.2 inch 16:10 |
| 1920*1200 IPS | |
| 650 cd/㎡ | |
| TP | 5 points G+G Capacitive touch screen |
| Camera | Front:5.0MP |
| Rear: 8.0MP USB Camera With flash light | |
| Speaker | Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic | Sensitivity:-42db, Output resistance:2.2kΩ |
| Small Battery | Built-in Li-polymer battery |
| 7.4V/700mAh | |
| 30mins ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
|

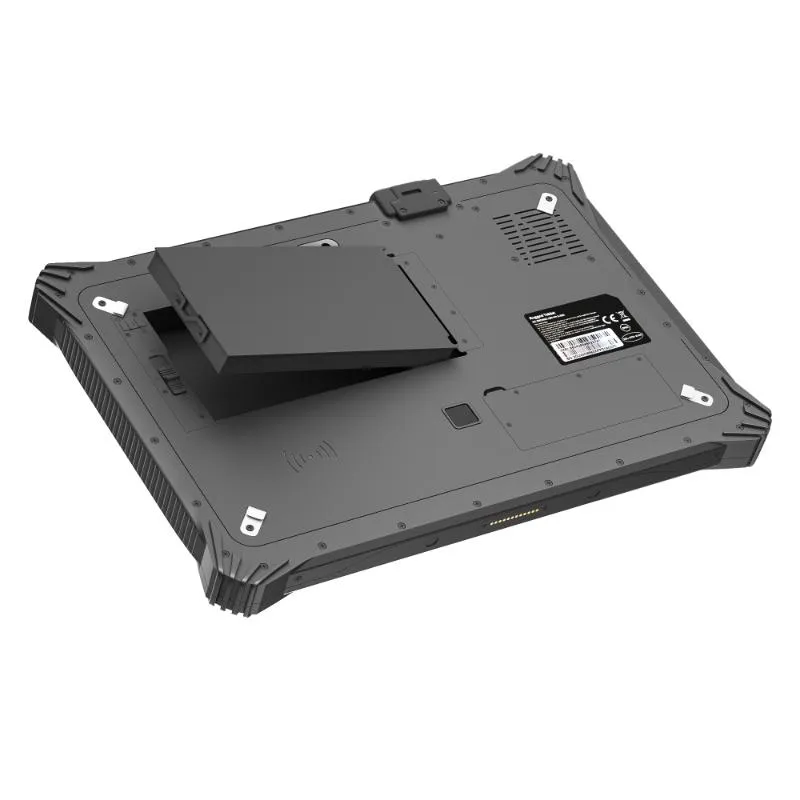

| Bigl Battery | Removable Li-polymer battery |
| 7.4V/6300mAh | |
| 5hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
|
| System Hardware Configuration | |
| CPU | Intel® Celeron® Processor N5105 |
| RAM | 8GB Optional 16GB |
| SSD | 128GB |
| G_sensor | Gravity acceleration sensor |
| Fingerprint | SPI fingerprint (power on login) |
| NFC | Optional |
| Network Connections | |
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT5.0 |
| 4G/5G Optional | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 Optional 5G |
| GPS | Built-in GPS, Beidou, glonass |
| Interface Configuration | |
| type A usb | x1 USB 3.0 |
| Type C | *1 Type C (USB3.0/HDMI/Charging) |
| Earphone Jack | ∮3.5mm Standard Earphone Jack x1 |
| HDMI Jack | HDMI 1.4a mini x1 |
| TF Slot | Support TF x1 max：128G |
| SIM Slot | SIM x1 |
| DC Jack | DC 19V 3.42A ∮5.5mm Power connector x1 |
| pogo pin | x1 12pin（USB&Docking charging） |
| Keys | |
| F KEY | Scanner key x1，No barcode then customizable ((GPIO) |
| volume+ | Volume adjustment key(+) x 1 |
| volume- | Volume adjustment key(-) x 1 |
| power | x1 |
| Indicator light | |
| power | Power on is always blue, power off light is off ×1 |
| baterry | (Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1 |
| Reliability | |
| Product Reliability | 1.22cm composite wood floors, in operation status |
| ‘-20 °C to 60 °C | |
| ’-30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
