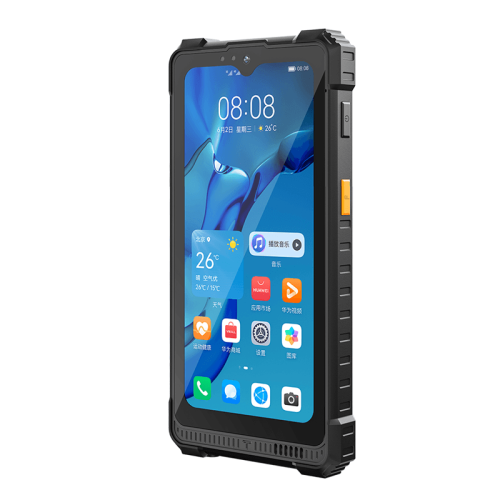

Vstrong 6.5″ Windows Rugged Handheld: Full PC Power in Your Palm
The Vstrong 6.5-inch rugged handheld terminal is a groundbreaking mobile computing solution that brings the full versatility of Windows and Linux OS to a pocket-sized form factor. Engineered for elite field professionals, this terminal is powered by the Intel® Gemini Lake N4020 processor with 8GB RAM, ensuring desktop-class software runs smoothly on the move.
Designed for high-intensity outdoor use, its 700-nit high-brightness display guarantees superior readability under direct sunlight. Despite its compact size, it is a connectivity powerhouse featuring 4G LTE, high-precision GPS, and optional integrated 2D barcode scanners and NFC. With a ruggedized chassis and a reliable 3580mAh battery, it is the ultimate tool for industrial inspection, logistics management, and mission-critical field service where failure is not an option.
| Product Form | Type | 6.5 inch windows Rugged Handheld |
|---|---|---|
| Size | 182.4*87.66*23.15mm | |
| Weight | 470g | |
| Screen size | 6.5 inch，full laminated TFT color full screen Dropnotch， 20:9 | |
| Screen resolution | 720*1600，IPS | |
| Screen brightness | 700cd/㎡ | |
| TP Touch screen | 5 points Capacitive, G+FF, Corning Gorilla Glass, Hardness 6H or higher, scratch-resistant. | |

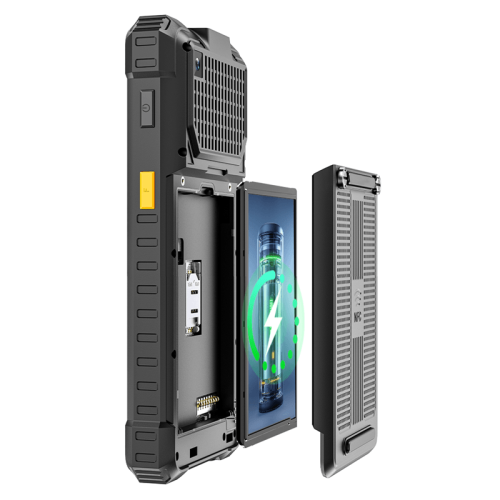

| Battery | 7.4V/3580mAhExternal polymer lithium ion battery，About 6 hours | |
| Camera | Front 8.0MP，Rear 12.0MP | |
| Speaker | Embedded 1Ω/1W speaker* 1 95dB@0.1m | |
| MIC | single microphone | |
| Button | Power *1 | |
| Volume Adjustment Key (+) *1 | ||
| Volume Adjustment Key (-) *1 | ||
| Bar code scanning (left and right)*2 | ||
| Hardware configuration | CPU | Gemini Lake N4020 processor, 2 cores and 2 threads, embedded 4 MB SmartCache, TDP 6W The maximum frequency is 2.8GHz |
| GPU | Intel® UHD Graphics 600 | |
| RAM | 8GB LPDDR4 | |
| SSD | 128GB EMMC | |
| G_sensor | Support | |
| System | windwos | Windows 11 Optional windows10 |
| Wireless Connection Function | WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.0 (BLE) class1 transmission distance: greater than 10m | |
| 3G/4G (Optional ) |
LTE-FDD：B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 LTE-TDD：B38/39/40/41 WCDMA：B1/2/4/5/6/8/19 |
|
| 5G (Optional ) |
Region:EMEA,Australia,Japan,Korea 5G SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42 WCDMA:B1/B5/B8 Region:China Region: North America |
|
| GPS | GPS、Beidou, Galileo、GLONASS | |
| NFC | 13.56MHz，Support ISO/IEC 14443A/14443B/15693/18092/mifare reading distance: 3-5cm | |
| 2D Barcode Scanner （Optional） |
Optional, Honeywell N4680 hard decode Optical resolution: 5mil Scanning speed: 30 times /s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse” |
|
| Interface | TYPE-C | TYPE-C 2.0*1 (Charge、OTG 、(Data transmission） |
| USB | USB3.0*1 | |
| TF | *1（Max: 512GB） | |
| SIM | *1（Nano-SIM） | |
| POGO PIN | *1（4pin） | |
| Product reliability | Certification | IP67，3C，CE，FCC，MIL-STD-810H，China Energy Conservation Certification UN38.3，MSDS，IEC62133 |
| Drop test height | 1.5m Composite wood floor working (Power-on state) | |
| Working temperature | ‘-20 °C – 60 °C | |
| Storage temperature | ’-30 °C – 70 °C | |
| Humidity | 95% Non-Condensing | |
| Others | Power supply | Input 100-240V AC 0.5A 50/60Hz Chinese standard CCC certification PD3.0 30W |
| Accessories | 30W Fast charge adapter、C to C data cable | |
| Accessories (Optional) | Charge Base |
