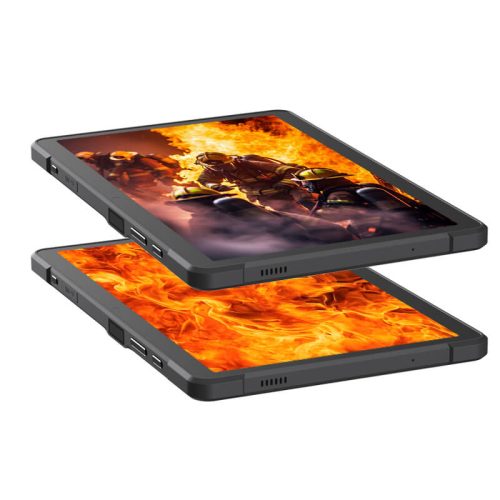

Sunlight-Readable Display: 10.95-inch IPS screen with 700 nits high brightness and 1920×1200 resolution, providing crystal-clear visibility even under direct sunlight.
-
Massive 20000mAh Battery: Equipped with an ultra-large capacity battery for extended field shifts, reducing the need for frequent charging in remote areas.
-
Military-Grade Durability: IP68 waterproof/dustproof and MIL-STD-810H certified. Built to withstand 1.22m drops, extreme temperatures (-20°C to 60°C), and vibrations.
-
Specialized Touch Screen: Features a 10-point G+FF touch panel that supports medical rubber gloves and optional wet-hand operation, catering to specialized industrial tasks.
-
High-Speed Connectivity: Supports Global 4G LTE, dual-band Wi-Fi, and precision GPS/Glonass/Galileo/Beidou navigation for seamless data transmission and positioning.
-
Powerful Octa-Core Performance: Driven by the Unisoc T606 (8-core) processor with 8GB RAM and 128GB storage, ensuring smooth multitasking for industrial APPs.
-
Enhanced Security & Ports: Includes a 13MP rear camera, 5MP front camera, and Type-C/3.5mm interfaces to meet diverse field data collection needs.
| Product Form | Configure | FHD High Brightness 8+128G |
|---|---|---|
| Size weight | Bare metal: 263.9*175.5*13.9mm/842g With packaging accessories:340*204*35mm/1250g | |
| Standard Packing Specification |
Quantity: 10 pcs/carton；Dimension: 37*35*22.8cm；Gross Weight: 13kg | |
| Wall hole pitch / screw | 154×71.5mm/ M3*4.5mm | |
| color | Black, color can be customized | |
| screen size | 10.95inch，16:10 | |
| screen resolution | IPS 1920*1200 | |
| screen brightness | 700cd/㎡ | |
| TP touch screen | 10-point touch G+FF, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) | |
| Battery | 20000mAh, 3.8v high voltage lithium battery, non-removable, battery life 16-18h (Play 1080P HD video, 50% brightness and 50% sound) | |
| Camera | Front camera: 8MP fixed focus Rear camera: 32MP auto focus,flash |
|
| Buttons | Power button*1 Volume keys*2, Vol+, Vol- Custom keys*1, P key |
|
| Hardware configeration |
Speaker, receiver, microphone | *2, speaker 2W/8Ω aluminum film, waterproof speaker; *1, waterproof handset *1, MIC,waterproof rating |
| CPU | MT6789V，Octa-core，2x ARM Cortex-A76 (@2.2GHz) + 6x ARM Cortex-A55 (@2.0GHz) | |
| RAM/ROM | 8G+128GB | |
| Vibration motor | Support | |
| Gravity sensor | Support | |
| Compass | Support | |
| Gyro | Support | |
| Light-sensitive | Support | |
| distance sensing | Support | |
| Operation system | Android 14 | |
| Wireless connection | WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI |
| Bluetooth | Bluetooth 5.0 (BLE) class1 transmit distance：10m | |
| 2G/3G/4G | GSM: B2/B3/B5/B8 WCDMA:B1/2/4/5/8 LTE-FDD: B1/2/3/4/5/7/8/12/17/18/19/20/25/26/28AB/66 LTE-TDD: B38/B39/B40/B41 |
|
| Positioning system | GPS、Beidou, Galileo、GLONASS | |
| NFC | 13.56MHZ support. 14443A/14443B/15693 and other protocols | |
| Date collection | 1D/2D scanner (custom function) |
Standard version (N1) 0.3M pixels + depth of field Code 39 5mil 65~150mm + red light Reading code system: 2D: PDF417, QR Code, Micro QR, Data Matrix 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN- 128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey High-end version (N670) 1.0M pixels + depth of field Code 39 5mil 45~200mm + cross laser |
| Ports | TYPE-C | *1，Type-C adapt OTG |
| TF, SIM card slot (two out of three) |
TF card slot, support up to 256GB expansion SIM card slot, standard NANO SIM card slot |
|
| POGO PIN | *1 ,12Pin USB+charger | |
| Mainboard reserved expansion interface | Interface requirements:3.3V-1A/5V-1A power supply, UART interface, interface level 3.3V, USB2.0 interface,5V 1A power supply | |
| Product reliability | Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Working temperature | -20℃~60℃ （custom-30℃~60℃） | |
| Storage temperature | -30℃~70℃ （custom-40℃~70℃） | |
| Humidity | Humidity: 95% Non-Condensing | |
| Other | CE-NB | YES |
| MIL-STD-810H | YES | |
| Adapter | Type-C power adapter, supports PD3.0, up to 30W | |
| Option accessories | Strap/stand | |
| Product reliability | Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Working temperature | -20℃~60℃ | |
| Storage temperature | -30℃~70℃ | |
| Humidity | Humidity: 95% Non-Condensing | |
| Certificates | IP68,3C，CE，US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test | |
| CE-NB | YES | |
| MIL-STD-810H | YES | |
| CCC | YES | |
| Adaptor | 5.3V/3A，DC interface adapter | |
| Option accessories | Strap/charging base/stand | |
